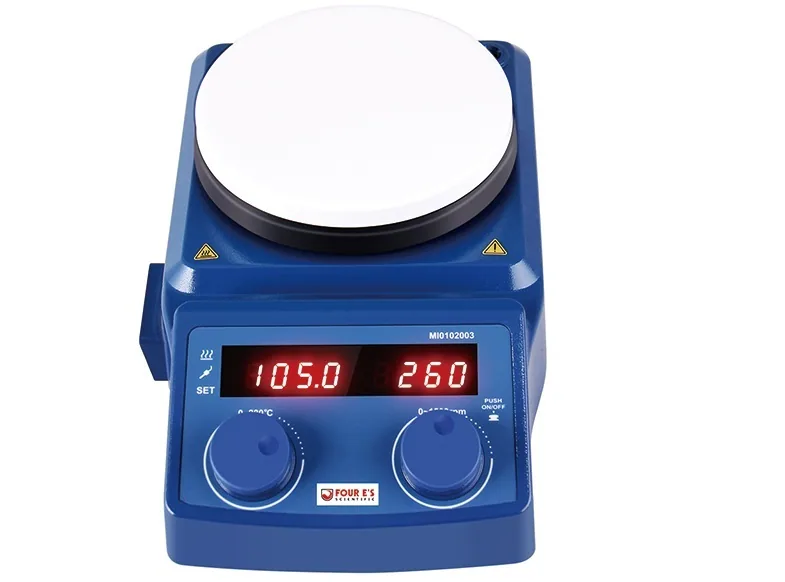

Máy khuấy từ gia nhiệt MI0102003

Máy khuấy từ gia nhiệt MI0102003

  • Máy khuấy từ gia nhiệt; Máy khuấy từ; Magnetic Hotplate Stirrer; Stirrer; Hotplate.
  • Mã sản phẩm: MI0102003
  • Xuất xứ: Trung Quốc
  • Thương hiệu: Four E's scientific
  • Kho hàng: Có sẵn
  • Khuyến mại: 12 tháng
  • Tài liệu: Tải về
Thêm vào giỏ

Introduction:

The 5 inch Round-top LED digital Magnetic Hotplate Stirrer is with 280℃ heating temperature, which is the only low temperature magnetic stirrer in the world. It has micro controller and LED display, especially the stirrer can work with external temperature sensor PT1000.

Features:

    LED digital display for easy reading
    Special plastic casing is high-temperature resistant and strong flame-retardant
    Temperature is up to 280°C and the safety temperature is 50-320°C
    Stainless steel with ceramic coated hotplate allows for immediate heat transfer
    3D digital wheel operation to adjust the speed and temperature
    Automatically identifies temperature sensor PT1000 and transfer to PT1000 operation mode

Specification:

Model

MI0102003

Stirring positions

1

Set-up plate dimensions

Ø 135 mm

Set-up plate material

Stainless steel with ceramic coated

Motor type

DC motor

Max. stirring quantity (H2O) [L]

5

Max. stirring bar [L x Φ, mm]

55*10

Motor rating input [W]

3

Motor rating output [W]

2.5

Speed range [rpm]

100-1500

Speed display

LED

Heating output [W]

600

Heating temperature range [°C]

Room temp.- 280

Temperature display

LED

Temperature display accuracy [°C]

±0.1

Safety temperature [°C]

50-320

External temperature sensor

PT1000

Control accuracy with external temperature sensor PT1000 [°C]

±1

Hot surface warning

50°C

Permissible ambient temperature [°C]

5 - 40

Permissible relative humidity

80%

Protection class
according to DIN EN 60529

IP 42

Voltage [VAC]

200-240/100-120

Frequency [Hz]

50/60
