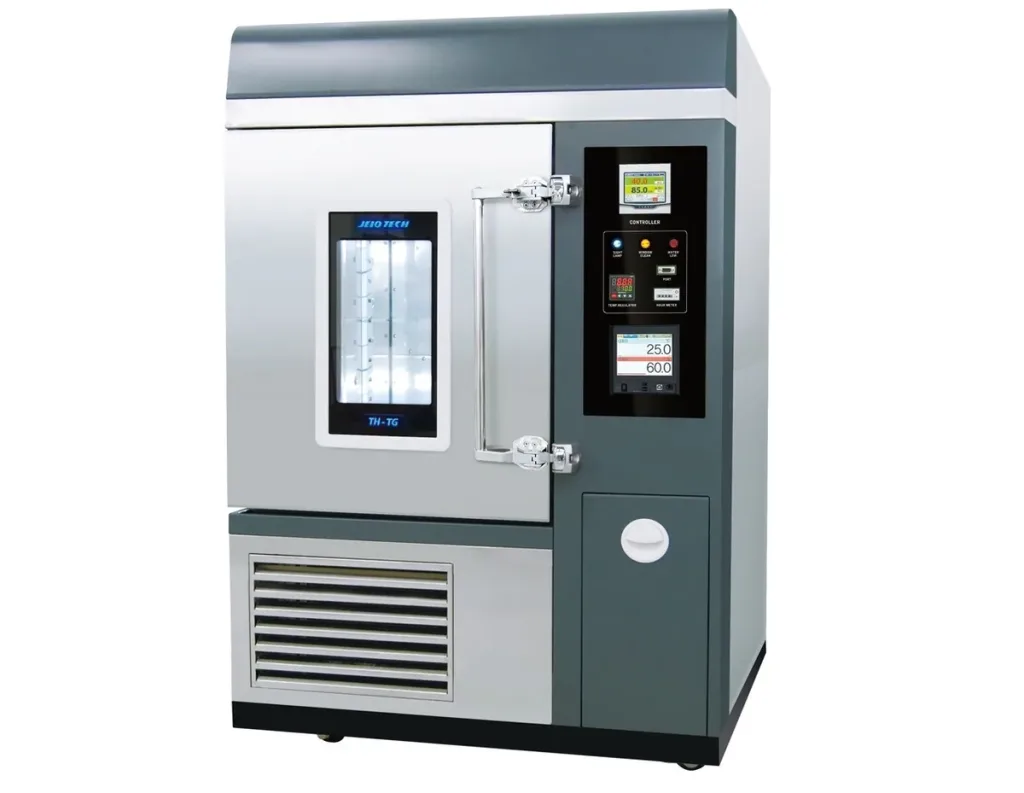

Buông nhiệt độ và độ ẩm
- Temp. & Humid. Chambers(TH-TG), Buông nhiệt độ độ ẩm,TH-TG-180, TH-TG-300.
- Mã sản phẩm: TH-TG-180/300/408/800/100/1500
- Xuất xứ: Korea
- Thương hiệu: Jeiotech
- Kho hàng: Có sẵn
- Khuyến mại: 12 tháng
- Tài liệu: Tải về
Control range

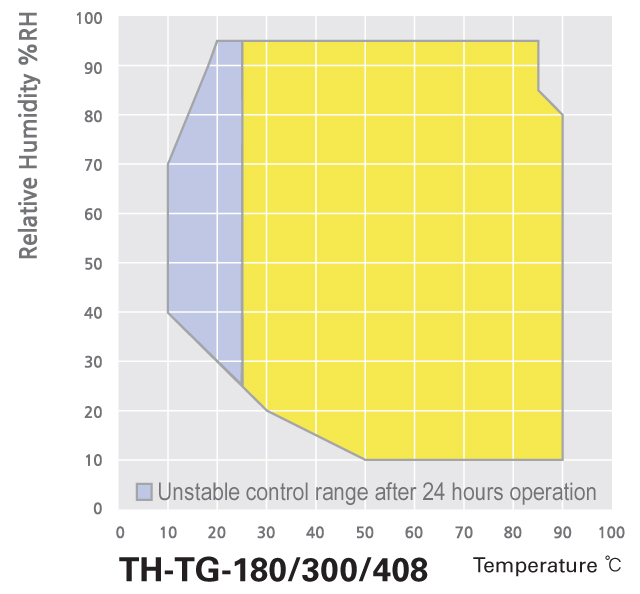

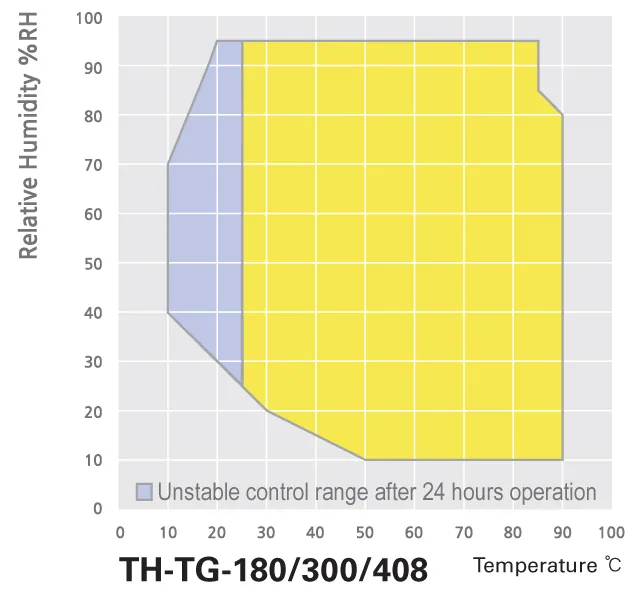

- Temperature range from -5 to 100°C Humidity range from 10 to 95% RH

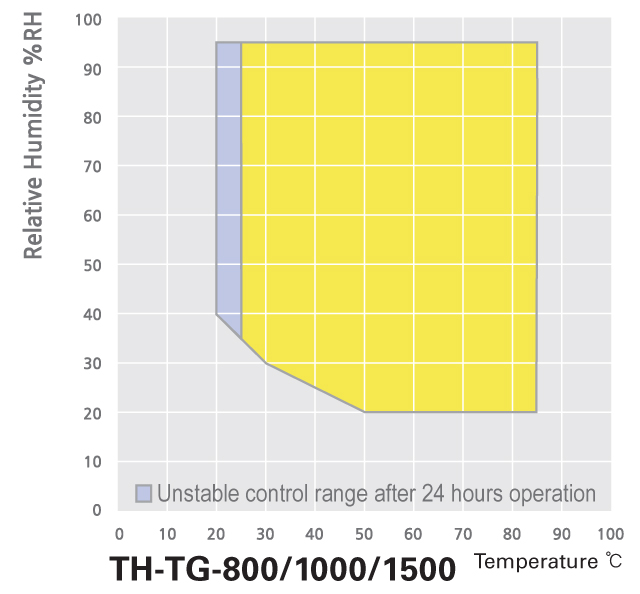

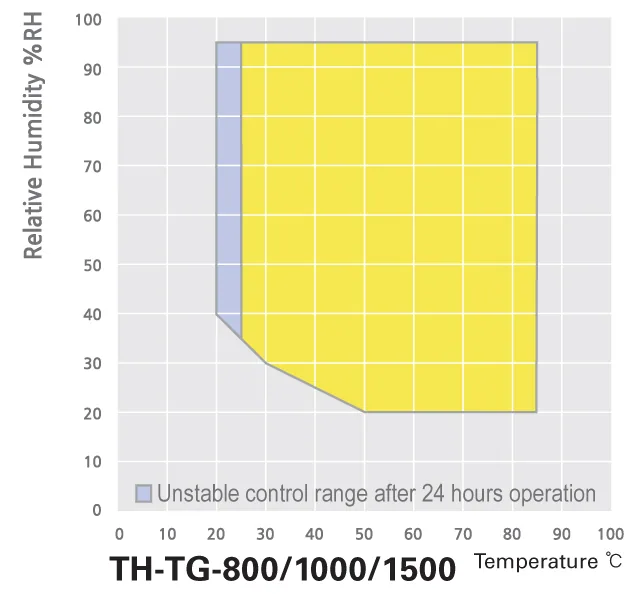

- Temperature range from -5 to 100°C Humidity range from 20 to 95% RH
Performance
- Microprocessor PID control / Temperature calibration / Automatic tuning.
- Advanced performance of low and high temperature and humidity control, achieved by adapting the humidification tank exterior to the chamber, added benefit for long term test.
- Water recycling system reduce water consumption for longer operation.
-
Air-tight door closure with perfect sealed packing.
- Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber.
- Two-point door latch also enhances tightness to door closure. -
Energy efficiency is achieved by optimization of the insulation system.
- Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures of over 60℃.
Safety
- Built in door lock with a key.
- Automatic shut off after overheat alarm.
- Low and empty water level alarm.
- Power supply leakage breaker.
- Over current protection.
- Open door alarm.
Model | TH-TG-180 | TH-TG-300 | TH-TG-408 | TH-TG-800 | TH-TG-1000 | TH-TG-1500 | ||
---|---|---|---|---|---|---|---|---|
Chamber volume (L / cu ft) |
180 / 6.4 |
314 / 11.1 |
419 / 14.8 |
770 / 27.2 |
997 / 35.2 |
1540 / 54.4 |
||
Controller |
PID control (LCD Type) |
|||||||
Temperature 1) |
Range |
without humidity (℃/℉) |
-5 to 100 / 23 to 212 |
|||||
with humidity (℃/℉) |
10 to 90 / 50 to 194 |
20 to 90 / 68 to 194 |
||||||
Fluctuation1) (±℃/℉) at 40℃/60%RH |
0.3 / 0.55 |
|||||||
Variation1) (±℃/℉) at 40℃/60%RH |
0.5 / 0.9 |
|||||||
Time |
Heating |
50min (-5℃ → 100℃) |
55min (-5℃ → 100℃) |
|||||
Cooling |
120min (100℃ → -5℃) |
145min (100℃ → -5℃) |
||||||
Humidity |
Range (%RH) |
10 to 95 ※ See feature page for more detailed humidity range check. |
20 to 95 ※ See feature page for more detailed humidity range check. |
|||||
Fluctuation2) (±%RH) at 60%RH/40℃ |
2 |
|||||||
Variation2) (±%RH) at 60%RH/40℃ |
3 |
|||||||
Refrigeration |
System |
Air - cooled |
||||||
Refrigerant |
R- 507A |
|||||||
Water tank |
Capacity (L / cu ft) |
15 / 0.53 |
30 / 1.1 |
|||||
Water quality |
pH6.2 ~ 7.2, Electrical conductivity 20㎲ / cm to below |
|||||||
No. of wire shelves (standard / max.) |
2 / 7 |
2 / 8 |
2 / 8 |
2 / 17 |
2 / 17 |
2 / 17 |
||
Distance of between shelves (mm / inch) |
60 /2.4 |
60 /2.4 |
60 /2.4 |
60 /2.4 |
60 /2.4 |
60 /2.4 |
||
Max. load per shelf (kg / lbs) |
20 / 44.1 |
25 / 55.1 |
25 / 55.1 |
40 / 88.2 |
40 / 88.2 |
40 / 88.2 |
||
Permitted total load (kg / lbs) |
50 / 110.2 |
65 / 143.3 |
65 / 143.3 |
100 / 220.5 |
100 / 220.5 |
100 / 220.5 |
||
Dimension (W×D×H) |
Viewing window (mm / inch) |
200×330 / 7.9×13 |
||||||
Interior (mm / inch) |
500×600×600/ 19.7×23.6×23.6 |
748×600×700/ 29.4×23.6×27.6 |
748×800×700/ 29.4×31.5×27.6 |
748×920×1120/ 29.4×36.2×44.1 |
748×1190×1120/ 29.4×46.9×44.1 |
1100×1000×1400/ 43.3×39.4×55.1 |
||
Exterior (mm / inch) |
952×907×1503/ 37.5×35.7×59.2 |
1201×907×1525/ 47.3×35.7×60 |
1201×1107×1525/ 47.3×43.6×60.0 |
1200×1228×1993/ 47.3×48.3×78.5 |
1201×1498 ×1993/ 47.3×59.0×78.5 |
1554×1872×1935/ 61.2×73.7×76.2 |
||
Net weight (kg / lbs) |
220±10 / 485±22 |
250±10 / 551±22 |
280±10 / 617±22 |
360±10 / 794±22 |
410±10 / 904±22 |
480±10 / 1058±22 |
||
Cable port |
Basically one hole provided / Ø 50mm (2”), Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”) |
|||||||
Interface port |
Basically RS-232C, [RS-485 : optional] |
|||||||
Electrical requirements | AC230V, 1ph, 60Hz | 12.3 A | 14.5 A | 14.5 A | 15.4 A | 15.4 A | 25.0A | |
Cat.No. | AAHC2001K | AAHC2011K | AAHC2021K | AAHC2031K | AAHC2041K | AAHC2051K | ||
AC230V, 1ph, 50Hz | 14.8A | 17.4A | 17.4A | 18.5A | 18.5A | 30.0A | ||
Cat.No. | AAHC2002K | AAHC2012K | AAHC2022K | AAHC2032K | AAHC2042K | AAHC2052K |
1) All specifications are under ambient temperature 20℃ (68℉), No load.
2) Technical data according to DIN 12880, IEC 60068.
