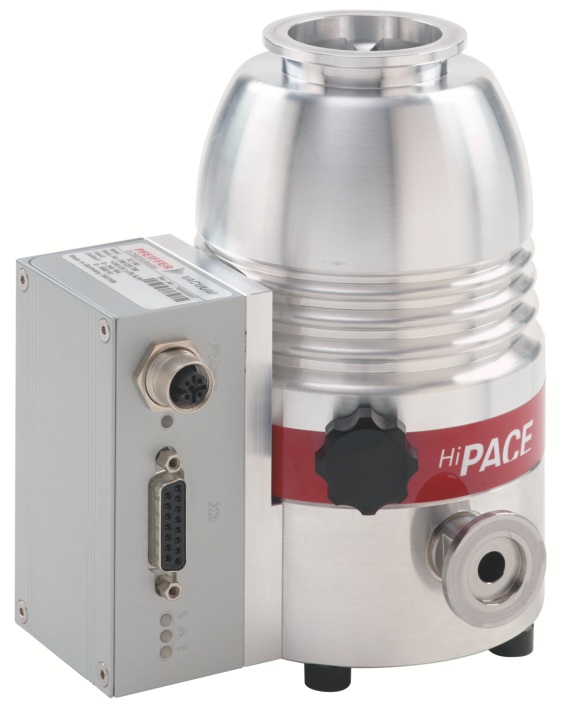

Bơm châm không TMP SplitFlow80

Technical Data (Splitflow80) HiPace® 80 with TC 110, DN 40 ISO-KF
Electronic drive unit with TC 110
Final pressure according to PNEUROP < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar
Final pressure without gas ballast < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar
Fore-vacuum max. for N2 22 hPa | 16.5 Torr | 22 mbar
Gas throughput at final rotation speed for Ar 0.54 hPa·l/s
Gas throughput at final rotation speed for H2 15.3 hPa·l/s
Gas throughput at final rotation speed for He 2.7 hPa·l/s
Gas throughput at final rotation speed for N2 1.3 hPa·l/s
I/O interfaces RS-485, Remote
Mounting orientation Arbitrary
Operating voltage: V DC 24 (± 5 %) V DC
Permissible radial magnetic field max. 3.8 mT
Power consumption max. 110 W
Protection degree IP54
Pumping speed for Ar 30 l/s
Pumping speed for H2 38 l/s
Pumping speed for He 41 l/s
Pumping speed for N2 35 l/s
Rotation speed ± 2 % 90,000 rpm | 90,000 min-1
Rotation speed variable 50 – 100 %
Run-up time 1.7 min
Sound pressure level ≤48 dB(A)
Venting connection G 1/8"
Weight 2.4 kg | 5.29 lb

Order part: PM P04017D
