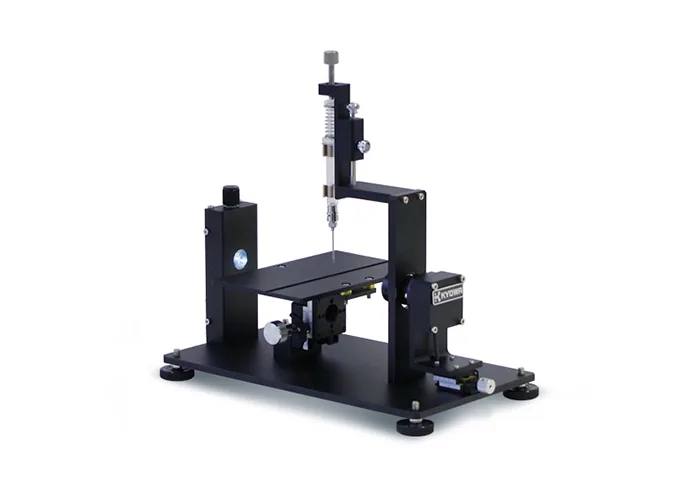

Contact Angle Meter

Contact Angle Meter

  • Contact Angle Meter, DMe-211.
  • Mã sản phẩm: DMe-211
  • Xuất xứ: Nhật
  • Thương hiệu: Kyowa Interface Science
  • Kho hàng: Có sẵn
  • Khuyến mại: 12 tháng
  • Tài liệu: Tải về
Thêm vào giỏ

The DMe-211 is an economical yet fully-featured contact angle meter with a computer image analysis system.

The unit combines manual droplet volume regulation, and stage up/down motion for gentle deposition of droplets with "FAMAS-basic" software controlled analysis of static and dynamic contact angle (30fps) as well as surface and interfacial tension using the pendant drop method. Analysis software to determine the surface free energy of solids is a standard feature.

Features
Automatic recognition of droplet deposition
Live image display and droplet volume monitoring
Movie converter
Manual dispenser with a set of 5 glass syringes and 5 SUS needles for precise adjustment of droplet volume and quick refilling and replacement of liquid samples
Fine adjustable stage in z-axis for gentle deposition of droplets without distortion
Adjustable level of the body and stage
Droplet calibration standard for standard view, bearing one full circle for calibration and three droplet silhouettes of 5º, 60º, and 108º for periodic inspection of measurement accuracy

Applications
Determination of wettability of surfaces like glass, metal, plastics, ceramics at ambient temperature
Surface cleanliness
Determination of surface and interfacial tension using the pendant drop kit (standard view)
Analysis of surface free energy of solids

  DMe-211
Camera system USB2.0 CMOS camera: 30fps at 640x480 pixels
Optical system
 		 focus: manual focus with fixed zoom
field of view: 6.3x4.7mm
Measuring methods
 		 contact angle: sessile drop (static and dynamic)
surface/interfacial tension: pendant drop (static and dynamic)
Analysis methods


 		 contact angle: θ/2, tangent, circle fitting, ellipse fitting
surface/interfacial tension: Young-Laplace method, ds/de method
surface free energy: Owens-Wendt, Kaelble-Uy, Kitazaki-Hata, Wu, acid-base, Zisman
Measuring range
 		 contact angle: 0.1 to 180°
surface/interfacial tension: 0.1 to 100mN/m
Resolution
 		 contact angle: 0.1°
surface/interfacial tension: 0.1mN/m
Accuracy1)
 		 contact angle: 0.3°
surface/interfacial tension: 0.3mN/m
Maximum sample surface area and height (WxDxH) 160x100x10mm

Maximum sample weight 300g
Sample stage operation:
X-axis
Y-axis
Z-axis
---
---
10mm, manually by a rotary knob
Dispenser operation:
Z-axis
Droplet generation
Dispensing resolution
---
manually, by a rotary knob
0.1μL
Droplet deposition manually, by stage operation
Dimensions (WxDxH) 170x346x283mm
Weight ca. 1.8kg
Electric power
 		 USB bus power
DC5V, max. 500mA
Operating environment
 		 temperature: +10 to +35℃, humidity: 30-80%RH (non-condensing)
positioned away from sources of electrical noise and vibration
