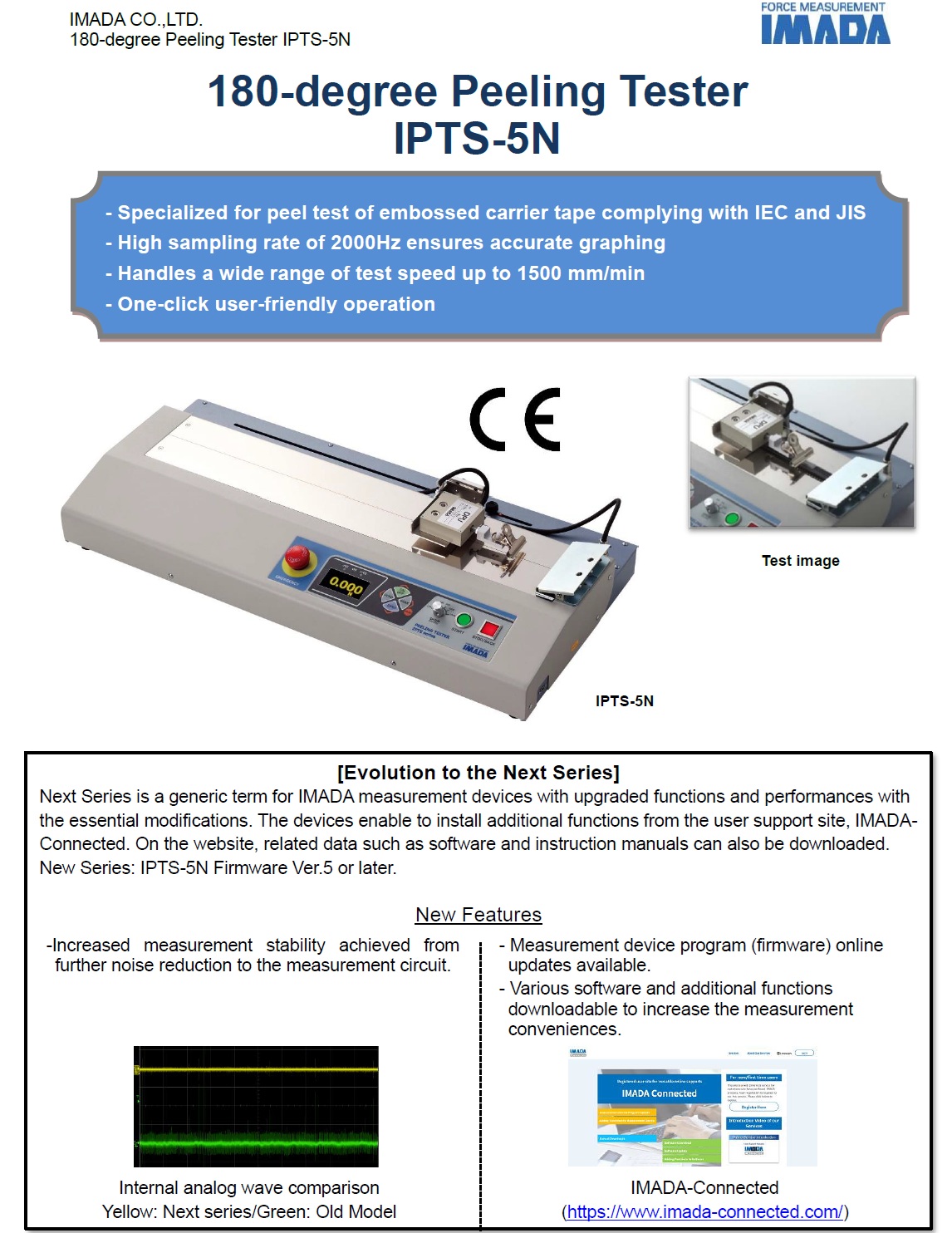

Peeling Tester IPTS-5N

Specifications
Model IPTS-5N
Capacity 5N
Resolution 0.001N
Accuracy +/-0.2%F.S. +/-1digit
Overload
Approx.150% F.S
(It warns with warning buzzer and light flashing when the force is over
110% of capacity.)
Sampling rate Max.2000 data / sec (2000Hz)
Test speed 120, 200, 300, 500, 1000, 1500mm/min (Switchable)
Stroke (length) Travel of load cell: Approx. 400mm (Peel length: Approx.200mm)
Peel angle 165°-180° (Height and angle are adjustable.)
Max. sample width
Adhesion: 88mm
(Film clip: 40mm, Sample clip: 95mm)
Max. sample thickness Cover film: 0.5mm
Safety device
Emergency stop button, Overload prevention
(Valid only when the power is ON) (*1)
Power AC100 to 240V free input (*2)
Weight Approx. 11kg
Operating environment Temperature: 0 to 40°C Humidity: 20 to 80%RH
Accessories
Force Recorder Standard (graphing software), USB cable, Power cable,
Film clip, Inspection certificate, Instruction manual
*1 It does not guarantee complete protection against overload.
*2 Please specify the voltage when you order. (Accessory varies depending on voltage.)
Specifications of supplied software
Data transferring speed Max. 2000 data / sec (2000Hz)
Recording data point Max. 7.2 million
Graph
Graph overlaying function, Capture function, Graph scaling,
Statistics output, Point marking
Graph recording Trigger function
Edit Comment, Add notes, Borderline function
Output Printing (A4, letter size), CSV, Word, Excel, PDF
OS Windows 8.1/10/11
Hardware requirment (PC)
CPU: 1GHz or more recommended
Memory: 2GB or more recommended
Hard disk: 10GB (Data storage area) or more
Plat form NET Framework 4.8 or later
Image size Resolution 1024×768 pixel or more
