Automatic Vibratory Polisher

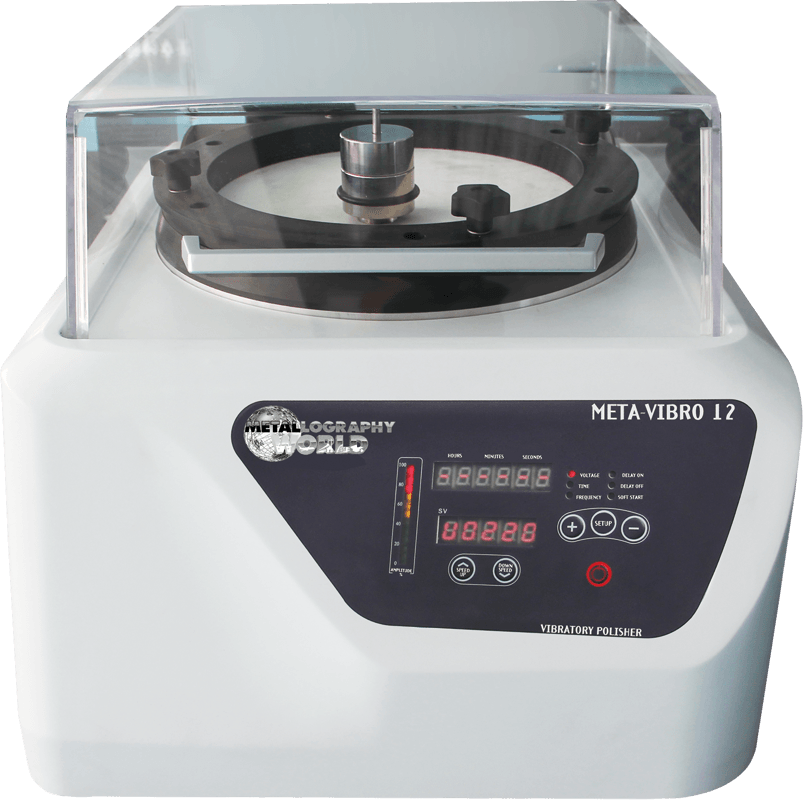

META-VIBRO 12 - Automatic Vibratory Polisher

META-VIBRO 12 is a vibratory polishing machine designed for the preparation of specimen surfaces practically without deformation. This preparation method is especially suited for further characterizations like EBSD (electron backscatter diffraction), nanoindentation using AFM (atomic force microscopy), or microhardness testing.
Due to the very gentle removal of material, it is applicable especially for soft and ductile materials, like titanium-aluminum, pure copper and copper alloys, aluminum alloys, soft steel, and nickel-based alloys.
Having a diameter of Ø=308mm, the large bowl provides sufficient space for the polishing of a complete sample holder, large specimens, or for the simultaneous polishing of up to 21 mounted specimens. The container is equipped with a double magnetic system. It allows us to fix, remove, and clean both the bowl or polishing cloth very quickly, without any tools or other fixings. Polishing cloths suited for a magnetic system with a diameter of 300mm or 305mm (12”) can be used.  The unit requires a water source that will plug into the back of the machine for it to use during the cooling process of the procedure. With an intermediate ram allowing you to make 2 mounts per run. An intermediate ram is included with all 4 assemblies.
