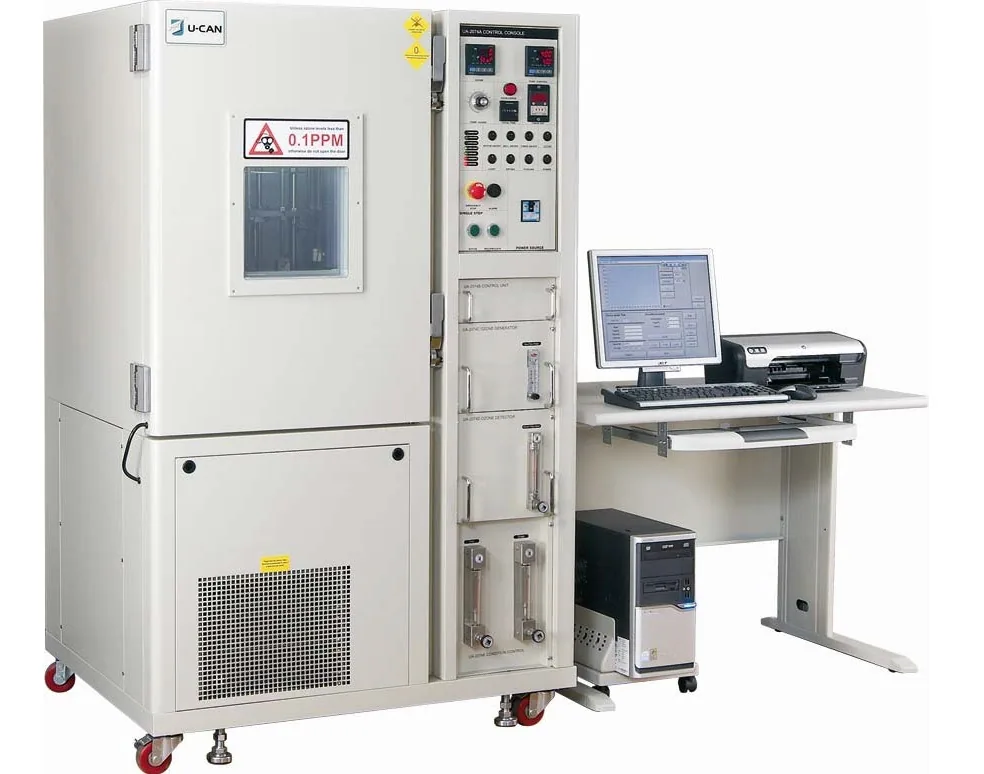

Tủ Ozone UA-2074

Tủ Ozone UA-2074

  • Tủ Ozone UA-2074; UA-2074 OZONE TEST CHAMBER.
  • Mã sản phẩm: UA-2074
  • Xuất xứ: Taiwan
  • Thương hiệu: U-CAN
  • Kho hàng: Có sẵn
  • Khuyến mại: 12 tháng
  • Tài liệu: Tải về
Thêm vào giỏ
Features
  1. Manufacturing in compliance with ASTM D-1171, JIS K-6259, and ISO 1431.
  2. Fully computerized for easy operation.
  3. Ozone concentration, temperature, chamber humidity and its stability are controlled and dynamic monitored via computer.
  4. Ozone concentration recorded automatically which ozone being detected automatically 0.1 sec one time and being displayed on the computer screen per 2 sec.
  5. A modulus machine which simplifies equipment maintenance.
  6. Co-development and producting with ITRI (Induatrial Technology Research Institute, top technical center in Taiwan) that ensures the machine with the best quailty and most advanced technology, ITRI would issue quality assurance certificate to every machine.
  7. CE certificated.



System Specification


1. Dimension of chamber
    Inside: 500 mm(W) × 500 mm(L) × 600mm(H), capacity 150L.
    Outside: 1050mm×915mm×1905mm,with an active carbon container which is 1185 mm in width     Stainless steel material inside.

2. Ozone operating range
   30~250 pphm (0.3~2.5 ppm)

3. Ozone generator High voltage ceramic discharge
4. Ozone sensor Ultra violet type detector module
5. Ozone conc. precious ±2 % of full scale
6. Flow control Inlet: 20~200 L/min
    Outlet: 20~200 L/min
    Circulation air speed:0.3~1.0 m/s
7. Temperature operating range
    -20~100℃±1℃
8. Time setting 0~999 hours
9. Test method 9 pieces dynamic test
10. Waste gas treatment Active carbon
11. Warming up Test chamber: 30 minutes / Detector: 60 minutes
12. Power source AC220V (single phase) / 30A, 50Hz / 60Hz
13. Control system External PC digital DAQ system(To be prepared by user itself.)
     PID Controller / Indicator

Standard Model for Ozone test Chamber: UA-2074

Optional functions of humidity free setting for Ozone test chamber with range 30%-90%RH at 40oC: UA-2074HD
