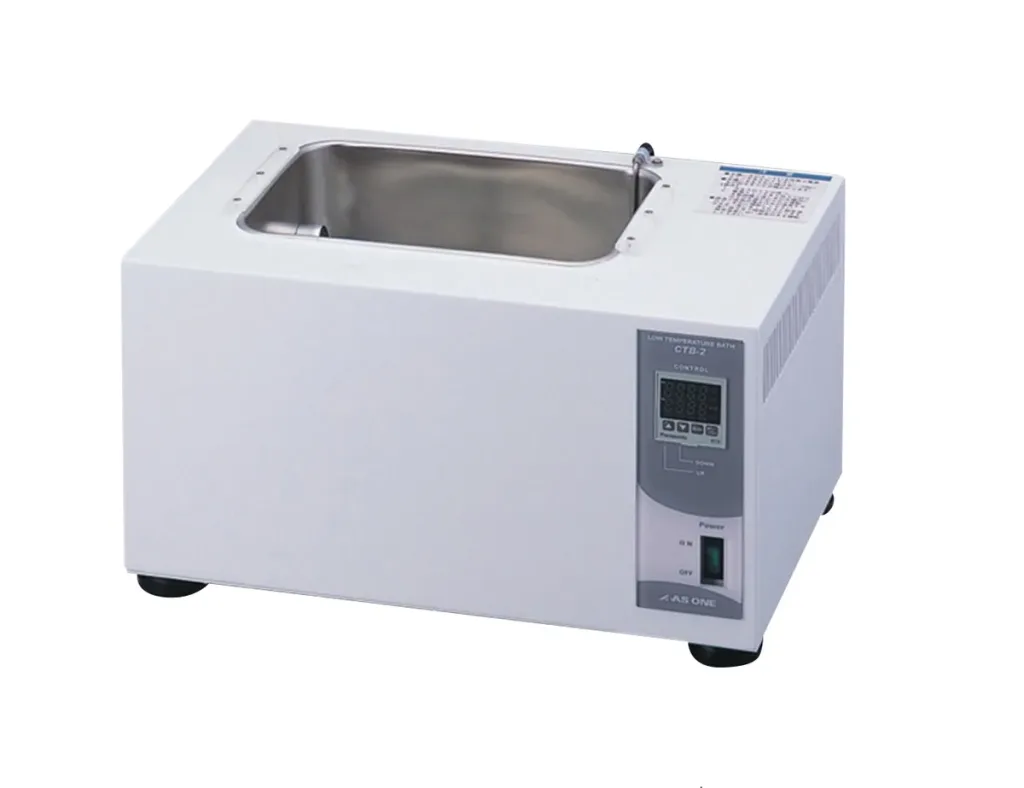

Bể điều nhiệt

Bể điều nhiệt

  • Bể điều nhiệt - Temperature Water Circulator: Thiết bị dùng để ổn định nhiệt độ, sử dụng trong các phòng Lab, QA, QC.
  • Mã sản phẩm: CTB-2
  • Xuất xứ: Nhật
  • Thương hiệu: AS ONE
  • Kho hàng: Có sẵn
  • Khuyến mại: 12 tháng
  • Tài liệu: Tải về
Thêm vào giỏ

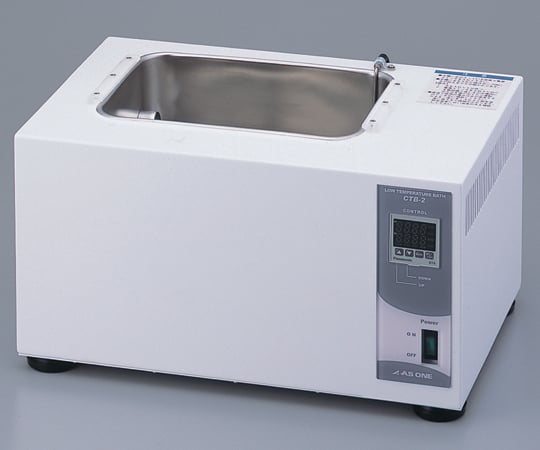

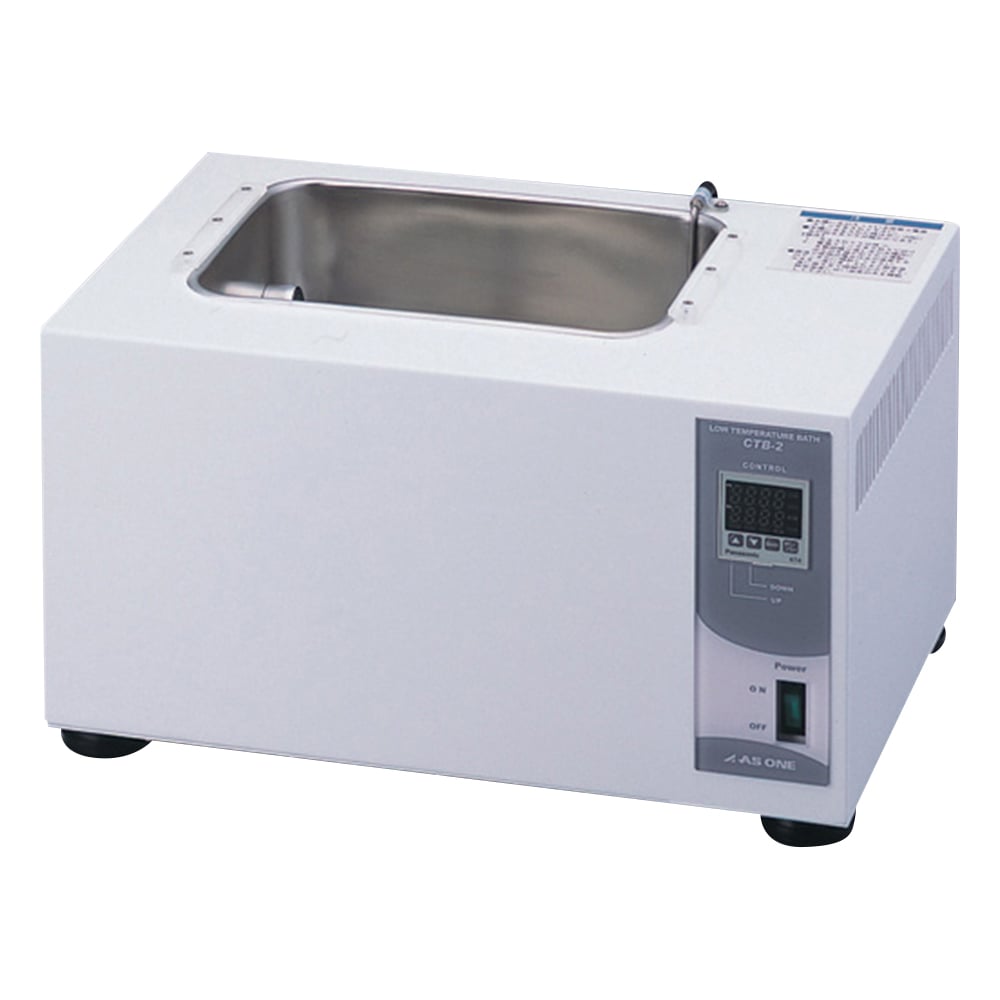

Temperature Water Circulator (Peltier Type) 3.0L CTB-2

Features

  • Electronic cooling method adopting peltier elements realizes clean cooling and heating.
  • Delicate temperature control is enabled for both heating and cooling.

Spec

  • temperature settings range: 4 to 65 ° C
  • Size: 435 x 280 x 235 mm
  • tank inner size (Top): 230 x 150 x 80 mm
  • Minimum set temperature unit: 0.1 ° C
  • Temperature adjustment accuracy: ± 1.0 ° C
  • Temperature control method: PID control and digital display
  • Heat cooling system: heating and cooling by Peltier element
  • Circulation Method: Agitation by electromagnetic pumps
  • Safety device: Overcurrent fuse
  • capacity: about 3.0 L
  • material: water tank / stainless steel (SUS304), main body / steel powder coating
  • power supply: AC100V, 50 / 60Hz, 2.1 A
  • power cord: 2 m (3P Plug)
  • Weight: 13 kg
  • * If R.T. 25 ° C is set at 5 ° C or below, it is recommended that the R.T. be below 20 ° C
  • Model Number: CTB-2
  • Package size:410×510×390 mm 16 kg





Specifications:

    temperature settings range: 4 to 65 ° C
    Size: 435 x 280 x 235 mm
    tank inner size (Top): 230 x 150 x 80 mm
    Minimum set temperature unit: 0.1 ° C
    Temperature adjustment accuracy: ± 1.0 ° C
    Temperature control method: PID control and digital display
    Heat cooling system: heating and cooling by Peltier element
    Circulation Method: Agitation by electromagnetic pumps
    Safety device: Overcurrent fuse
    capacity: about 3.0 L
    material: water tank / stainless steel (SUS304), main body / steel powder coating
    power supply: AC100V, 50 / 60Hz, 2.1 A
    power cord: 2 m (3P Plug)
    Weight: 13 kg
    * If R.T. 25 ° C is set at 5 ° C or below, it is recommended that the R.T. be below 20 ° C
    Model Number: CTB-2
    Package size:410×510×390 mm 16 kg
