Tủ sấy kích thước lớn - lập trình

Tủ sấy kích thước lớn - lập trình

  • Tủ sấy Korea, Tủ sấy Hàn Quốc, Tủ sấy JeioTech.
  • Mã sản phẩm: OF3-30P/45P/75P, 30HP/45HP/75HP
  • Xuất xứ: Korea
  • Thương hiệu: Jeiotech
  • Kho hàng: Có sẵn
  • Khuyến mại: 12 tháng
  • Tài liệu: Tải về
Thêm vào giỏ

Programmable model (OF3-P/PH)

for intelligent program control

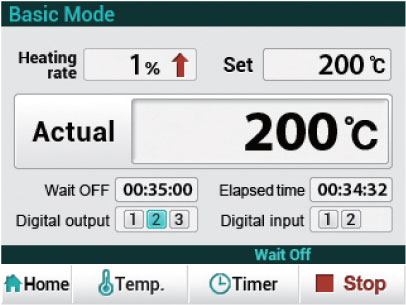

Color touch LCD display

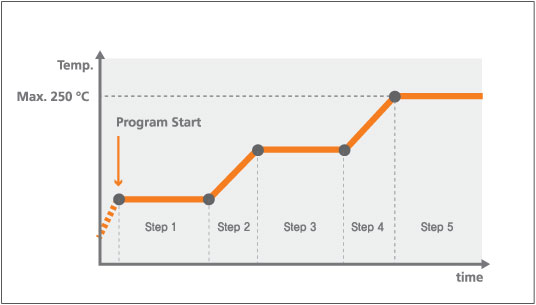

  • 10 programs available for temperature ramp up and dwell control.
  • 10 steps per a program and 99 hours 59 minutes per a step.
  • Stored programs are easily linkable.
  • Programs can be repeated up to 99 cycles.
  • Pre-heating and heating time are settable before program starts.






Performance

  • Rapid heating performance up to maximum 300°C
  • Microprocessor PID control.
  • Three point temperature calibration / Automatic tuning.
  • Forced air convection generated by two noiseless and powerful sirocco fans ensures optimal air circulation, temperature uniformity, and short heat-up time.
  • Adjustable dual slide vents for inner vapor circulation.
  • Energy efficiency is achieved thanks to optimization of the insulation system.
    - Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures.

Convenience

  • Optimum model selection is available according to two different types of control panel.
    - Intuitive touch screen LCD controller with easy icons and logical menus. (for OF3P/HP)
  • Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
  • Convenient presetting function for 3 most commonly used temperature settings.
  • Rounded inner chamber corners for easy cleaning and optimal airflow.
  • Corrosion-resistant incoloy sheath heating element and stainless steel interior.
  • Threefold tempered-glass window provides clear inside view of the chamber. (optional)
  • USB port and RS-232 port for external control and data collection.
  • Casters for easy mobility during installation or relocation.

Safety

  • Keypad lock function prevents accidental changes during operation.
  • Automatic run after power interruption.
  • Over-temperature and over-current protection.
  • Audible and visible open







Programmable Model OF3-30P OF3-45P OF3-75P OF3-30HP OF3-45HP OF3-75HP

Chamber volume (L / cu ft)

314 / 11.1

450 / 15.9

760 / 26.8

314 / 11.1

450 / 15.9

760 / 26.8

Temperaure

Range (℃ / ℉)

Amb. +10 to 200 / Amb.+18 to 392

Amb. +10 to 300 / Amb.+18 to 572

Fluctuation 1)

at 100℃ (±℃ / ℉)

0.2 / 0.36

0.2 / 0.36

Variation 1)

at 100℃ (±℃ / ℉)

2.0 / 3.6

2.2 / 3.96

2.5 / 4.5

2.0 / 3.6

 2.2 / 3.96

2.5 / 4.5

Dimension (W×D×H)

Interior (mm / inch)

645×750×650 /

25.4×29.5×25.6

645×750×930 /

25.4×29.5×36.6

745×850×1200 /

29.3×33.5×47.2

645×750×650 /

25.4×29.5×25.6

645×750×930 /

25.4×29.5×36.6

745×850×1200 /

29.3×33.5×47.2

Exterior (mm / inch)

850x1100x1235 /

33.5x43.3x48.6

850x1100x1525 /

33.5x43.3x60

950x1200x1785 /

37.4x47.2x70.3

850x1100x1235 /

33.5x43.3x48.6

850x1100x1525 /

33.5x43.3x60

950x1200x1785 /

37.4x47.2x70.3

Net weight (Kg / lbs)

200 / 440.9

240 / 529.1

300 / 661.4

200 / 440.9

240 / 529.1

300 / 661.4

Shelves

No. of wire shelf

(standard / max.)

2 / 5

3 / 8

3 / 11

2 / 5

3 / 8

3 / 11

Max. load per shelf

(kg / Ibs)

25 / 55.1

25 / 55.1

Electrical requirements (230V, 50/60Hz, A) 1P, 13.2
Cat No. Solid door AAH18615K - - - - -
Window door AAH18715K - - - - -
Electrical requirements (380V, 50Hz, A)   3P, 6.7 3P, 9.0 3P, 6.7 3P, 9.0 3P, 10.8
Cat No. Solid door - AAH186214K AAH186314K AAH196114K AAH196214K AAH196314K
Window door - AAH187214K AAH187314K AAH197114K AAH197214K AAH197314K

1) Technical data according to DIN 12880.
※ CE for 380V, 50/60hz.
