Hệ thống phân tích phổ EDS

Hệ thống phân tích phổ EDS

  • Đầu dò phân tích phổ EDS/ EDX Element là dòng đầu dò phân tích phổ tán xạ năng lượng tia X gắn trên SEM, TEM. Cho phép phân tích phổ nguyên tố tia X, phân tích điểm - vùng, phân tích đường - linescan, lập bản đồ nguyên tố - Mapping.
  • Mã sản phẩm: EDX/ Mapping
  • Xuất xứ: Mỹ
  • Thương hiệu: EDAX
  • Kho hàng: Đặt hàng
  • Tài liệu: Tải về
Thêm vào giỏ

Thiết bị phân tích phổ tán xạ năng lượng tia X hay còn gọi là thiết bị EDX dùng để phân tích thành phần nguyên tố có trong mẫu cả về định tính và định lượng (%); Phổ X-Ray; phổ EDX; phổ EDS.

Đây là loại đầu dò EDS được gắn vào hệ thống kính hiển vi điện tử SEM, TEM hoặc FIB mục đích xác định được nguyên tố có trong mẫu cần phân tích và thành phần phần trăm nguyên tố đó theo khối lượng trong vùng được quét.

Các chức năng phân tích: Phân tích - Analysis; Phân tích điểm - vùng (Point ID), chức năng phân tích đường - Line scan; Lập bản đồ nguyên tố - Mapping...

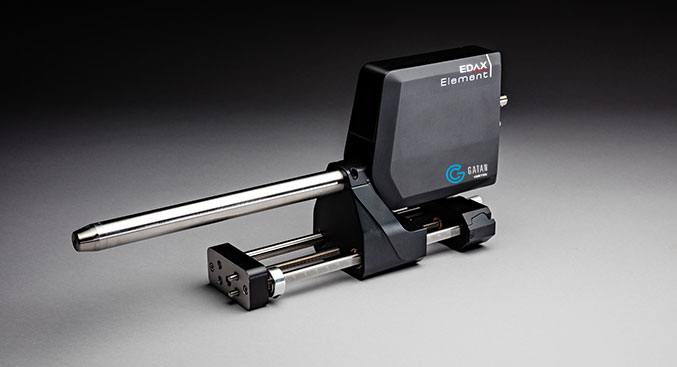

EDAX Element EDS System

The EDAX Element energy dispersive x-ray spectroscopy (EDS/EDX) system delivers powerful analytical capability in a compact package, maximizing performance and flexibility while providing streamlined operation to guarantee fast results and ease of use. It is ideal for the industrial market, where application-specific problems must be solved quickly and accurately. Combining an Element silicon drift detector (SDD) with the user-friendly APEX™ software provides a complete EDS microanalysis solution for all levels of analysis and high throughput industrial applications.

Element Silicon Drift Detector



Element SDDs
  • Excellent resolution
  • Designed with a silicon nitride (Si3N4) window to optimize low-energy X-ray transmission for light element analysis
  • Advanced low-noise electronics for outstanding throughput
  • Small footprint offers flexibility to ensure ideal geometry and data collection conditions
APEX software

The intuitive APEX software for EDS ensures high-end results and ease of use. APEX software simplifies compositional analysis and delivers high-quality data processing with accurate and reliable results. The user interface can be customized for a specific workflow, offering various layouts, colors, and data report formats.

Features and benefits

Outstanding light element results and best low-energy performance
  • The clearest window and low-noise electronics deliver a detection range down to Be.
Reliability
  • The design of the SDDs with the material properties and durability of the Si3N4 window offers the most robust and reliable detectors for EDS applications. The unique module design means they are corrosion and shock resistant and suitable for plasma cleaning.

Thông số kỹ thuật
Công nghệ chip SDD cửa sổ 30mm2.

Cửa sổ Si3N4

Độ phân giải 129eV với Mn tại 10k cps.

Tín hiệu đầu vào tia X > 1m cps

Thông lượng > 300k cps

Tỉ lệ đỉnh / nền: 10,000/1

Độ phân giải ổn định

Dải phát hiện: Từ Be tới Am

Công nghệ làm lạnh: Peltier

Phần mềm APEX cơ bản
