Thiết bị phân tích phổ tán xạ năng lượng tia X

Thiết bị phân tích phổ tán xạ năng lượng tia X

  • Thiết bị phân tích phổ tán xạ năng lượng tia X hay còn gọi là thiết bị EDX dùng để phân tích thành phần nguyên tố có trong mẫu cả về định tính và định lượng (%).
  • Mã sản phẩm: EDS/EDX
  • Xuất xứ: Mỹ
  • Thương hiệu: EDAX
  • Kho hàng: Đặt hàng
  • Tài liệu: Tải về
Thêm vào giỏ

Thiết bị phân tích phổ tán xạ năng lượng tia X hay còn gọi là thiết bị EDX dùng để phân tích thành phần nguyên tố có trong mẫu cả về định tính và định lượng (%); Phổ X-Ray; phổ EDX; phổ EDS.

Đây là loại đầu dò EDS được gắn vào hệ thống kính hiển vi điện tử SEM, TEM hoặc FIB mục đích xác định được nguyên tố có trong mẫu cần phân tích và thành phần phần trăm nguyên tố đó theo khối lượng trong vùng được quét.

Specifications
• Octane Elect SDD options:
• Plus (30 mm2)
• Super (70 mm2)
• 127 eV resolution at Mn Ka at 10k cps
• Carbon detection:
> 500k cps for ultra-fast mapping and
particle acquisition
• Detection range: AL L (73 eV) – Am
• Throughput: 700k ocps at 1.6m icps
• Cooling: Peltier
• Al L to Al K peak height ratio of 1:1 at
2.5 kV
• Supplied with APEX software for EDS –
standard and advanced options available
• APEX software available for integrated
EDS-EBSD applications

Octane là dòng đầu dò phân tích phổ tia X với công nghệ đầu dò silicon SDD tốc độ phân tích nhanh, độ phân giải cao cho độ nhạy tốt ngay cả với các nguyên tố nhẹ và với điện áp phân tích thấp.



Octane có 2 loại độ rộng cửa sổ là 30mm2 và 70mm2, độ phân giải 125eV (Mn)

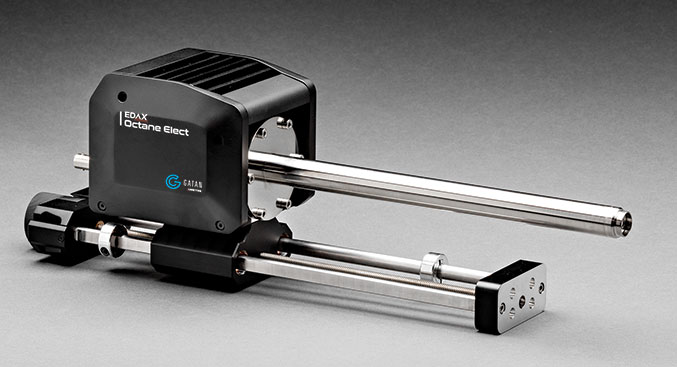

EDAX Octane Elect EDS/EDX System

The EDAX Octane Elect EDS system is an enhanced energy dispersive x-ray spectroscopy (EDS/EDX) platform with the latest silicon drift detector (SDD) technology and high-speed electronics advancements. Tailored for users who demand higher performance and functionality, the Octane Elect EDS system provides excellent resolution and high throughput at an optimal value with remarkable low-energy sensitivity for light element detection and low voltage (kV) microanalysis.

Octane Elect Silicon Drift Detector



The Octane Elect SDDs are available in 2 models:
EDAX Octane Elect Plus – 30 mm2 chip
EDAX Octane Elect Super – 70 mm2 chip

Best light element performance

The Octane Elect SDD with a silicon nitride (Si3N4) window offers major transmission improvements compared to detectors with a polymer window, leading to greatly improved light element performance and significantly more critical data for the materials analyst.

Low kV performance

The mechanical properties of Si3N4 allow the use of thinly fabricated windows with a low aspect ratio support grid, offering a significant benefit in terms of low energy sensitivity and optimal low voltage analysis.

Features and benefits

Optimized SDD electronics for stable energy at high collection rates
  • Fast pulse processing for mapping and quantification
  • Optimized data quality at all count rates
  • High-resolution quantitative analysis at mapping speeds greater than 400,000 output cps
Throughput

The EDAX EDS systems with advanced detection electronics offer the highest throughput count rate on the market for the best possible analysis and increased productivity.

Reliability

The design of the SDDs, with the material properties and durability of the Si3N4 window, offers the most robust and reliable detectors for all EDS applications. The unique design means they are corrosion and shock-resistant and suitable for plasma cleaning.

EDAX APEX EDS software allows users to optimize their analysis time and get the best possible data from their sample

APEX™ ensures high-quality, accurate results and increased productivity with its easy-to-use interface, live-time graphical display, and simultaneous review mode.
