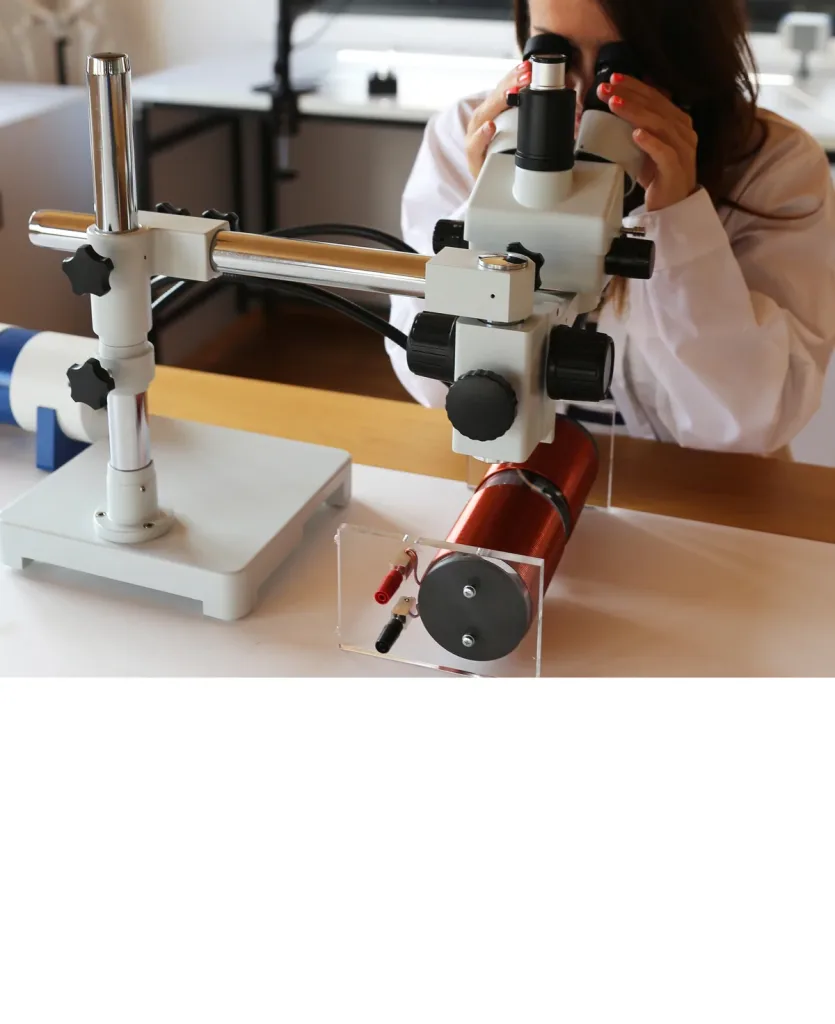

OPTIKA SZM Series is ideal for routine inspections on several industries, offering a V-shaped Greenough optical path to provide 3D viewing and detailed inspections on samples with a significant depth.

Binocular and trinocular heads are 20mm field of view and 45° inclined to grant comfortable posture to the user even after several hours of operation. The 6.43:1 zoom ratio enables most samples to be observed at the appropriate magnifications (additional lenses allow higher magnifications).

An extremely wide stand selection gives the chance to create tailored stereomicroscope: choose among the several models available to cover every customers’ needs, in terms of illumination (including the state-of-the-art, exclusive X-LED³ incident light of 3.6W on selected models), arm extension (including overhanging stands) and focusing system.
Special external illuminators and moving/heating stages are also available for specific applications.

Related Literature:

 OPTIKA – ROUTINE AND RESEARCH Stereomicroscopes – Brochure – EN - 7.08 MB

Back to Other Models

Head:
Binocular, 360° rotating, 45° inclined
Eyepieces:
Wide Field 10x/20mm
Objectives:
0.7x….4.5x zoom
Working Distance:
100 mm
Stand:
Pillar stand
Illuminator:
Incident and transmitted 12V/15W halogen.
