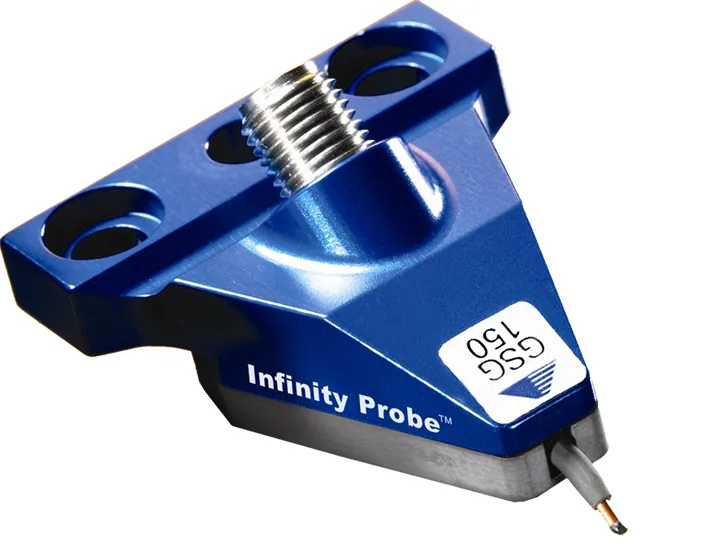

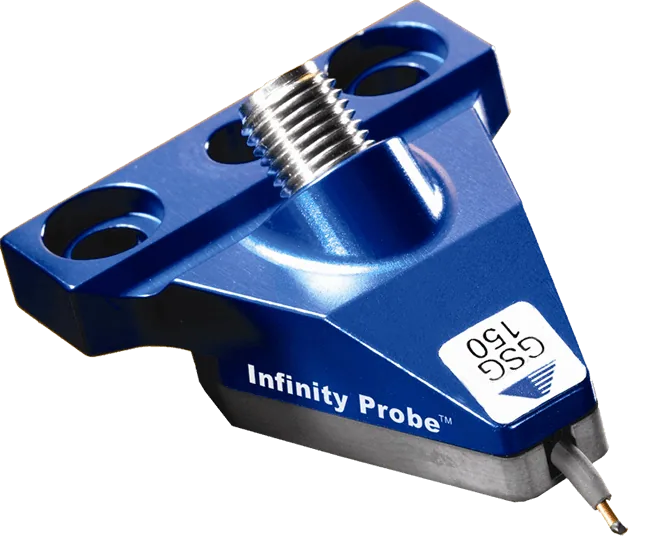

Infinity Probe – Coaxial

High-frequency performance with low, stable contact resistance on aluminum pad

nfinity Probe - Coaxial Overview

Ideal for device characterization and modeling, Infinity probe combines extremely low contact resistance on aluminum pads with unsurpassed RF measurement accuracy for highly reliable, repeatable measurements. Proprietary thin-film and coaxial probe technology reduces unwanted couplings to nearby devices and transmission modes.

















Infinity Probe - Coaxial Key Features

  • Lithographic thin-film construction
  • Excellent crosstalk characteristics
  • Non-oxidizing nickel alloy tips
  • Innovative force delivery mechanism

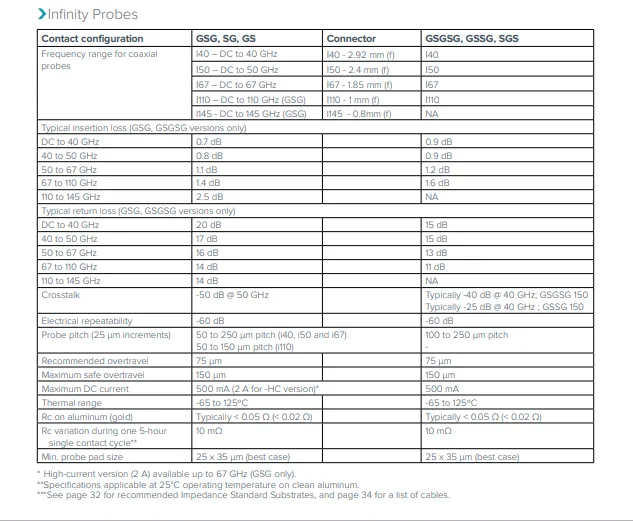

  • 40GHz, 50GHz, 67GHz, 110GHz and 145GHz connectors available

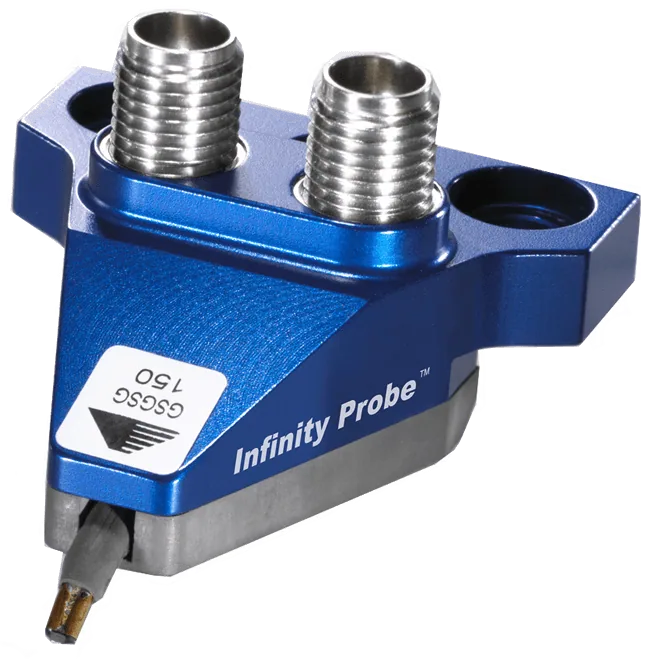

  • GSG, SG, GS, GSGSG, GSSG, SGS configurations
  • 50 to 250 µm pitches (other pitches available on request)
  • High current version (2 A) available

Advantages

  • Superior field confinement reduces unwanted couplings to nearby devices and transmission modes
  • Superior measurement accuracy and repeatability
  • Small scrub minimizes damage to aluminum pad
  • Typical contact resistance < 0. 05 Ω on Al, <0.02Ω on Au
  • Save valuable wafer space and reduce pad parasitics by being able to shrink pad geometries to 25 x 35 µ m (best case)
